dimensions
| GRADE NAME | 1.0L | 1.2L | ||
|---|---|---|---|---|
| LXi, LXi CNG, VXi, VXi AGS, VXi CNG | ZXi, ZXi AGS, ZXi+, ZXi+ AGS | |||
| Length (mm) | 3655 | |||
| Width (mm) | 1620 | |||
| Height (mm) | 1675 | |||
| Wheelbase (mm) | 2435 | |||
| Turning Radium (m) | 4.7 | |||

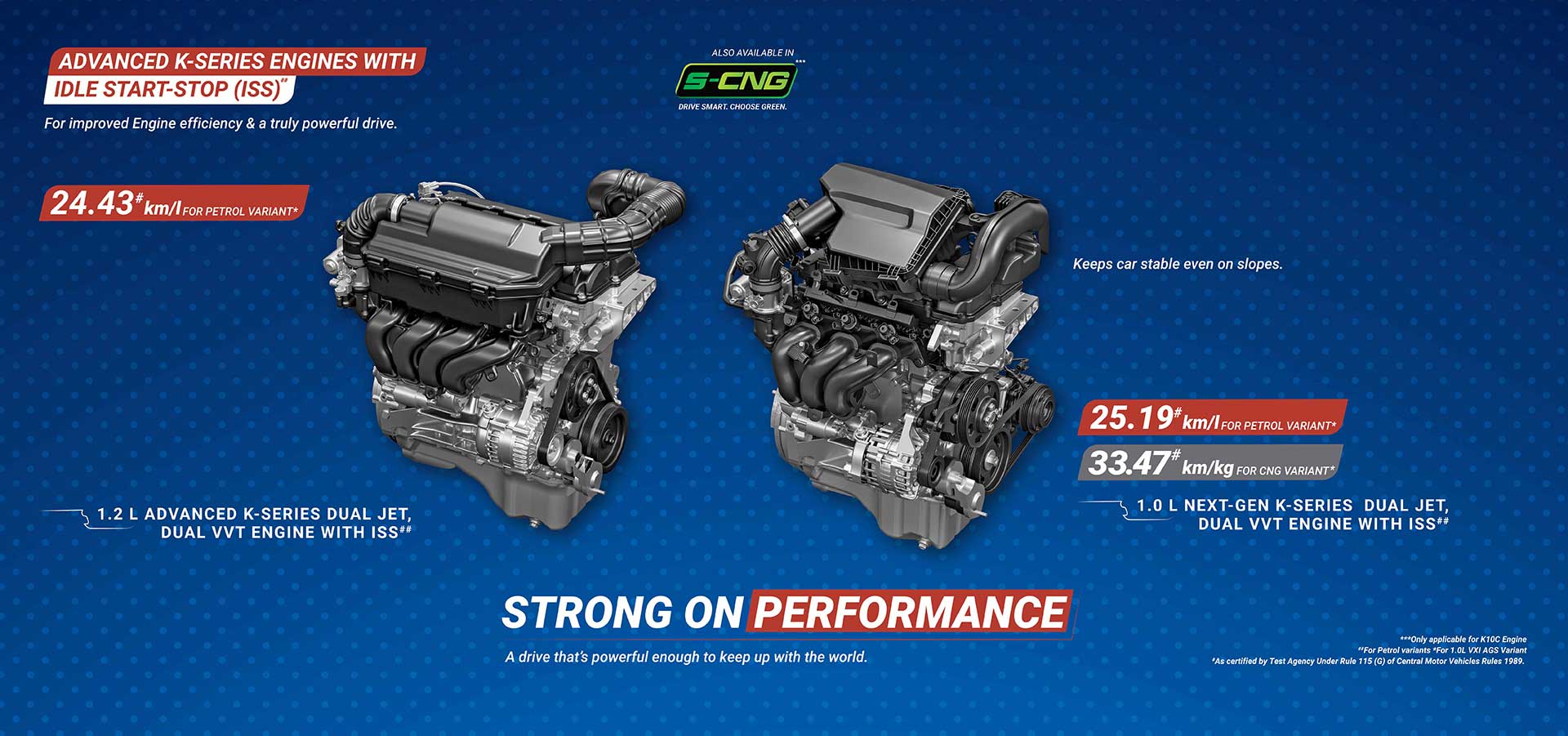

Engine & TRANSMISSION
| GRADE NAME | 1.0L | 1.2L | |
|---|---|---|---|
| LXi, LXi CNG, VXi, VXi AGS, VXi CNG | ZXi, ZXi AGS, ZXi+, ZXi+ AGS | ||
| Type | K10C | K12N | |
| Capacity (cc) | 998 | 1197 | |
| Number of cylinders | 3 | 4 | |
| Maximum engine output (kW @ rpm) | Petrol | 50.4 kW (68.5 PS) @ 5600 rpm | 66.9 kW (90.9 PS) @ 6000 rpm |
| CNG | 41.7 kW (56.6 PS) @ 5300 rpm (CNG mode) 49.8 kW (67.7 PS) @ 5600 rpm (Petrol mode) |
![]() |
|
| Maximum torque (Nm @ rpm) | Petrol | 91.1 Nm @ 3400 rpm | 113.7 Nm @ 4200 rpm |
| CNG | 82.1 Nm @ 3400 rpm (CNG mode) 91.1 Nm @ 3400 rpm (Petrol mode) |
![]() |
|
| Transmission | MT (LXi 1.0L / LXi CNG 1.0L / VXi CNG 1.0L / VXi 1.0L) / AGS (VXi 1.0L) | MT/AGS (ZXi 1.2L/ ZXi+ 1.2L) | |
SUSPENSION
| GRADE NAME | 1.0L | 1.2L | ||
|---|---|---|---|---|
| LXi, LXi CNG, VXi, VXi AGS, VXi CNG | ZXi, ZXi AGS, ZXi+, ZXi+ AGS | |||
| Front | Mac Pherson Strut with Coil Spring | |||
| Rear | Torsion Beam with Coil Spring | |||
CAPACITIES
| GRADE NAME | 1.0L | 1.2L | ||
|---|---|---|---|---|
| LXi, LXi CNG, VXi, VXi AGS, VXi CNG | ZXi, ZXi AGS, ZXi+, ZXi+ AGS | |||
| Seating Capacity | 5 | |||
| Fuel Tank Capacity (L) | 32 (Petrol) / 60 (Water equivalent) | 32 Petrol | ||
| Boot Space (Litres) | 335* (Petrol) | |||
WHEELS & TYRES
| GRADE NAME | 1.0L | 1.2L | |
|---|---|---|---|
| LXi, LXi CNG, VXi, VXi AGS, VXi CNG | ZXi, ZXi AGS, ZXi+, ZXi+ AGS | ||
| Size | 155/80R13 (LXi 1.0L / LXi CNG 1.0L), 165/70R14 (VXi 1.0L, VXi 1.0L CNG) |
165/70R14 (ZXi 1.2L, ZXi+ 1.2L) | |
| Type** | Radial & Tubeless, Steel Wheels | Radial & Tubeless, Steel Wheels (ZXi 1.2L) Radial & Tubeless, Alloy Wheels (ZXi+ 1.2L) |
|
BRAKES
| GRADE NAME | 1.0L | 1.2L | ||
|---|---|---|---|---|
| LXi, LXi CNG, VXi, VXi AGS, VXi CNG | ZXi, ZXi AGS, ZXi+, ZXi+ AGS | |||
| LXi, LXi CNG, VXi, VXi AGS, VXi CNG | ZXi, ZXi AGS, ZXi+, ZXi+ AGS | |||
| Front | DISC | |||
| Rear | DRUM | |||
weight
| GRADE NAME | 1.0L | 1.2L | |||||||
|---|---|---|---|---|---|---|---|---|---|
| LXi, LXi CNG, VXi, VXi AGS, VXi CNG | ZXi, ZXi AGS, ZXi+, ZXi+ AGS | ||||||||
| Gross Vehicle Weight (kg) | 1340 | ||||||||
| Kerb Weight (kg) | LXi MT | VXi MT | VXi AGS | ZXi MT | ZXi AGS | ZXi+ MT | ZXI+ AGS | LXi CNG MT | VXi CNG MT |
| 825 | 840 | 845 | 850 | 855 | 855 | 860 | 925 | 935 | |
All variants are BS VI (including OBD-II) compliant. #As certified by Test Agency Under Rule 115 (G) of Central Motor Vehicles Rules 1989. ***Pearl Bluish black colour available in all variant except LXI MT Petrol and CNG.
***Colour available in LXI MT petrol: Solid White, Metallic Silky Silver, Metallic Magma Grey.
AGS: Auto Gear Shift; MT: Manual Transmission.
Maruti Suzuki India Limited reserves the right to change, without notice, price, colours, equipment specifications, and model and also to discontinue models and/or replace any part or accessory with any product. Accessory and feature shown in the pictures may not be a part of standard equipment and will differ according to the variant. Any offers made will be
subject to availability of the product. For details, on functioning of safety features, including air bag, kindly refer to the Owner's Manual. For more details, contact your nearest store. **Spare wheel material is steel (for all variants). ^VDA Method.
subject to availability of the product. For details,on functioning of safety features, including air bag, kindly refer to the Owner’s Manual. For more details, contact your nearest store. **Spare wheel material is steel (for all variants). ^VDA Method.
*Android Auto™ extends the Android platform into the car in a way that’s purpose-built for driving. It is designed to minimise distraction so you can focus on driving with Google™ services like Google Maps™ and Google Search™. Get the Android Auto app on Google Play™. *Android Auto is available in the countries listed at the following link:
https://www.android.com/auto/#hit-the-road. *Most phones with Android 5.0+ work with Android Auto: https://support.google.com/androidauto/#6140477. *Android, Android Auto, Google, Google Play and other marks are trademarks of Google Inc. Image used are for illustration purposes only. ^^The speed alert system gives audible warning for alert of over-speed to
driver. When vehicle speed exceeds about 80 km/h, primary level warning with two beeps will sound every minute. When the vehicle speed exceeds about 120 km/h, secondary level warning with continuous beeps will sound. If the vehicle speed is slowed down to about 118 km/h, primary warning will resume. If the vehicle is slowed down to about 78 km/h, speed alert
warning will stop. This buzzer does not indicate any malfunction in vehicle. ##For details on functioning of safety features, including air bag, kindly refer to the Owner'’'s Manual.^#Terms and Conditions apply.

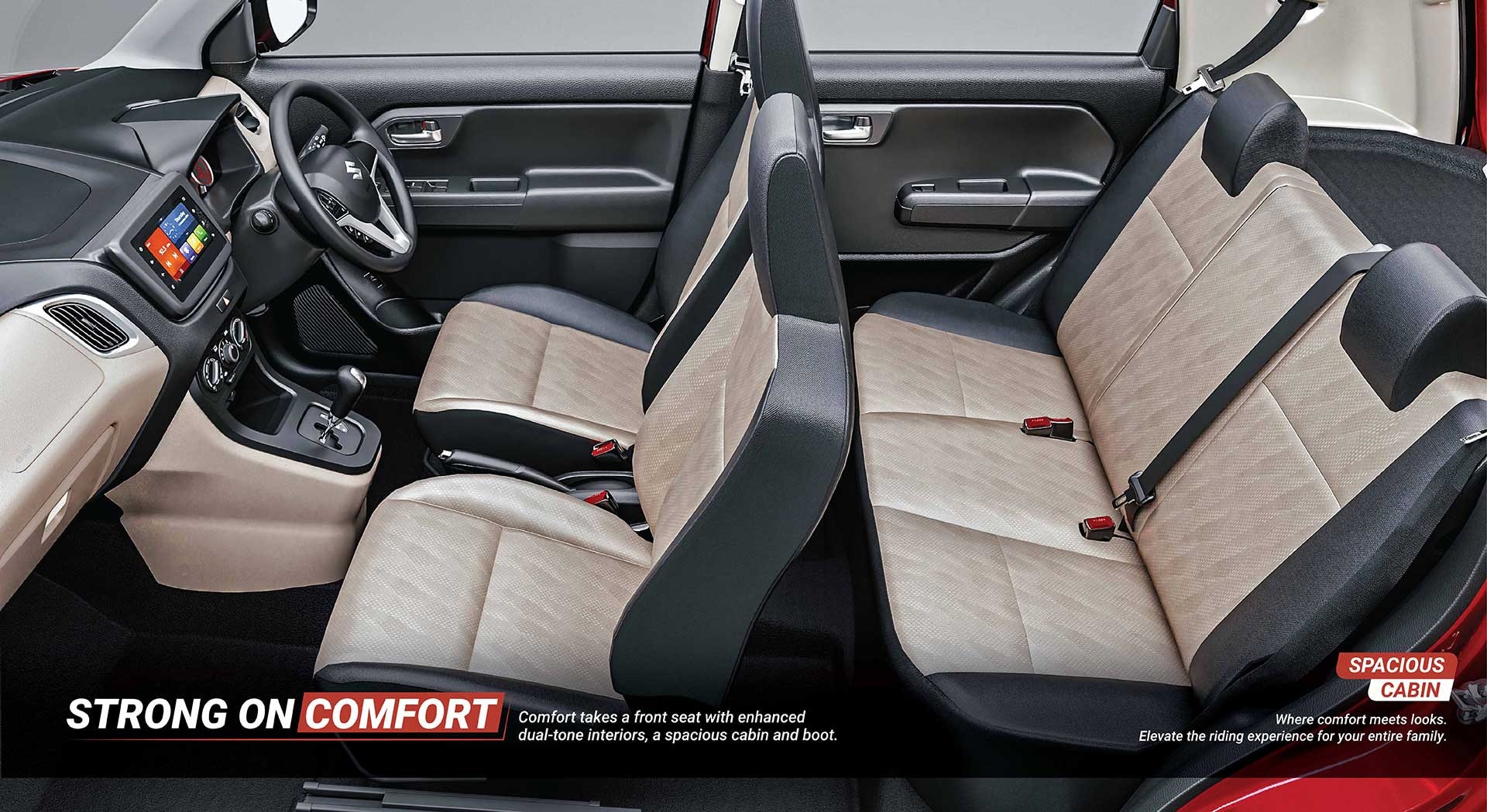

Interior
| GRADE NAME | 1.0L | 1.2L | ||
|---|---|---|---|---|
| LXi/LXi CNG | VXi / VXi AGS / VXi CNG |
ZXi/ ZXi AGS |
ZXi+/ ZXi+ AGS |
|
| Dual Tone Interiors | ![]() |
![]() |
![]() |
![]() |
| 2nd Row 60:40 Split Seat | ![]() |
![]() |
![]() |
![]() |
| Front Cabin Lamps (3 Positions) | ![]() |
![]() |
![]() |
![]() |
| Day/Night IRVM | ![]() |
![]() |
![]() |
![]() |
| Tilt Steering | ![]() |
![]() |
![]() |
![]() |
| Steering Wheel Garnish | ![]() |
![]() |
![]() |
![]() |
| Silver Inside Door Handles | ![]() |
![]() |
![]() |
![]() |
| Driver Side Sunvisor with Ticket Holder | ![]() |
![]() |
![]() |
![]() |
| Front Passenger Side Vanity Mirror Sunvisor | ![]() |
![]() |
![]() |
![]() |

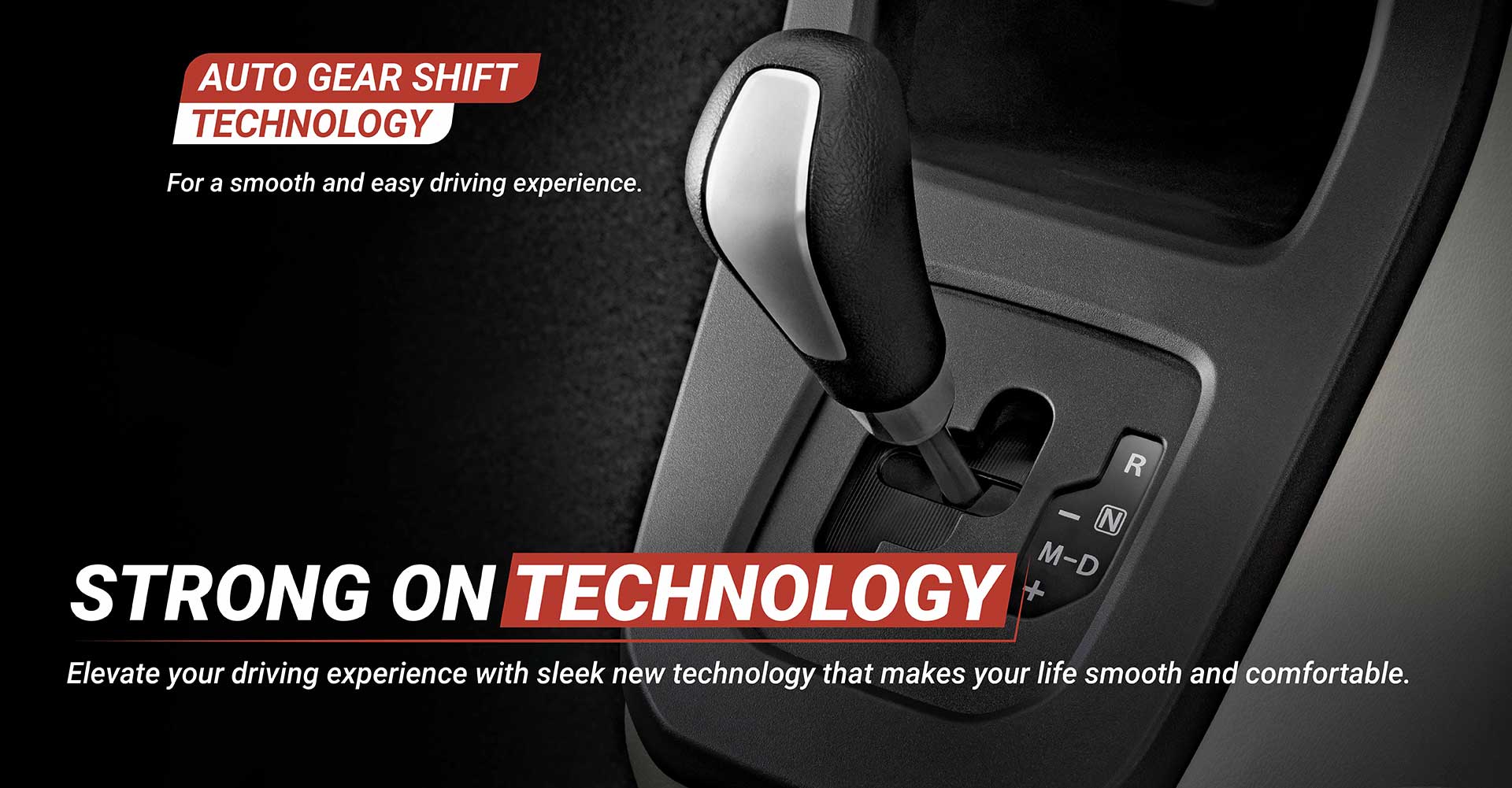

| Silver finish Gear Shift Knob (AGS Only) | ![]() |
![]() |
![]() |
![]() |
INSTRUMENT CLUSTER
| GRADE NAME | 1.0L | 1.2L | ||
|---|---|---|---|---|
| LXi/LXi CNG | VXi / VXi AGS / VXi CNG |
ZXi/ ZXi AGS |
ZXi+/ ZXi+ AGS |
|
| Instrument Cluster Meter Theme | Reddish Amber | Reddish Amber | Reddish Amber | White |
| Low Fuel Warning | ![]() |
![]() |
![]() |
![]() |
| Tachometer | ![]() |
![]() |
![]() |
![]() |
| Gear Shift Indicator (MT Only) | ![]() |
![]() |
![]() |
![]() |
| Gear Position Indicator (AGS Only) | ![]() |
![]() |
![]() |
![]() |
| Fuel Consumption (Instantaneous and Avg.) | ![]() |
![]() |
![]() |
![]() |
| Distance to Empty | ![]() |
![]() |
![]() |
![]() |
| Headlamp On Warning | ![]() |
![]() |
![]() |
![]() |
| Door Ajar Warning Lamp | ![]() |
![]() |
![]() |
![]() |
COMFORT & CONVENIENCE
| GRADE NAME | 1.0L | 1.2L | ||
|---|---|---|---|---|
| LXi/LXi CNG | VXi / VXi AGS / VXi CNG |
ZXi/ ZXi AGS |
ZXi+/ ZXi+ AGS |
|
| Idle Start Stop (ISS) | (Petrol) |
(Petrol) |
![]() |
![]() |
| Remote Keyless Entry | ![]() |
![]() |
![]() |
![]() |
| Accessory Socket Front Row with Storage Space | ![]() |
![]() |
![]() |
![]() |
| Power Windows (Fr/Rr) with Dr. Side Auto Down Function | Only Front | ![]() |
![]() |
![]() |
| AC & Heater | ![]() |
![]() |
![]() |
![]() |
| 1L Bottle Holders (All Four Doors + Floor Console) | ![]() |
![]() |
![]() |
![]() |
| Rear Parcel Tray | CNG only | ![]() |
![]() |
![]() |
| Co. Driver Side Front Seat Under Tray & Rear Back Pocket | ![]() |
![]() |
![]() |
![]() |
| Reclining & Front Sliding Seats | ![]() |
![]() |
![]() |
![]() |
INFOTAINMENT SYSTEM
| GRADE NAME | 1.0L | 1.2L | ||
|---|---|---|---|---|
| LXi/LXi CNG | VXi / VXi AGS / VXi CNG |
ZXi/ ZXi AGS |
ZXi+/ ZXi+ AGS |
|

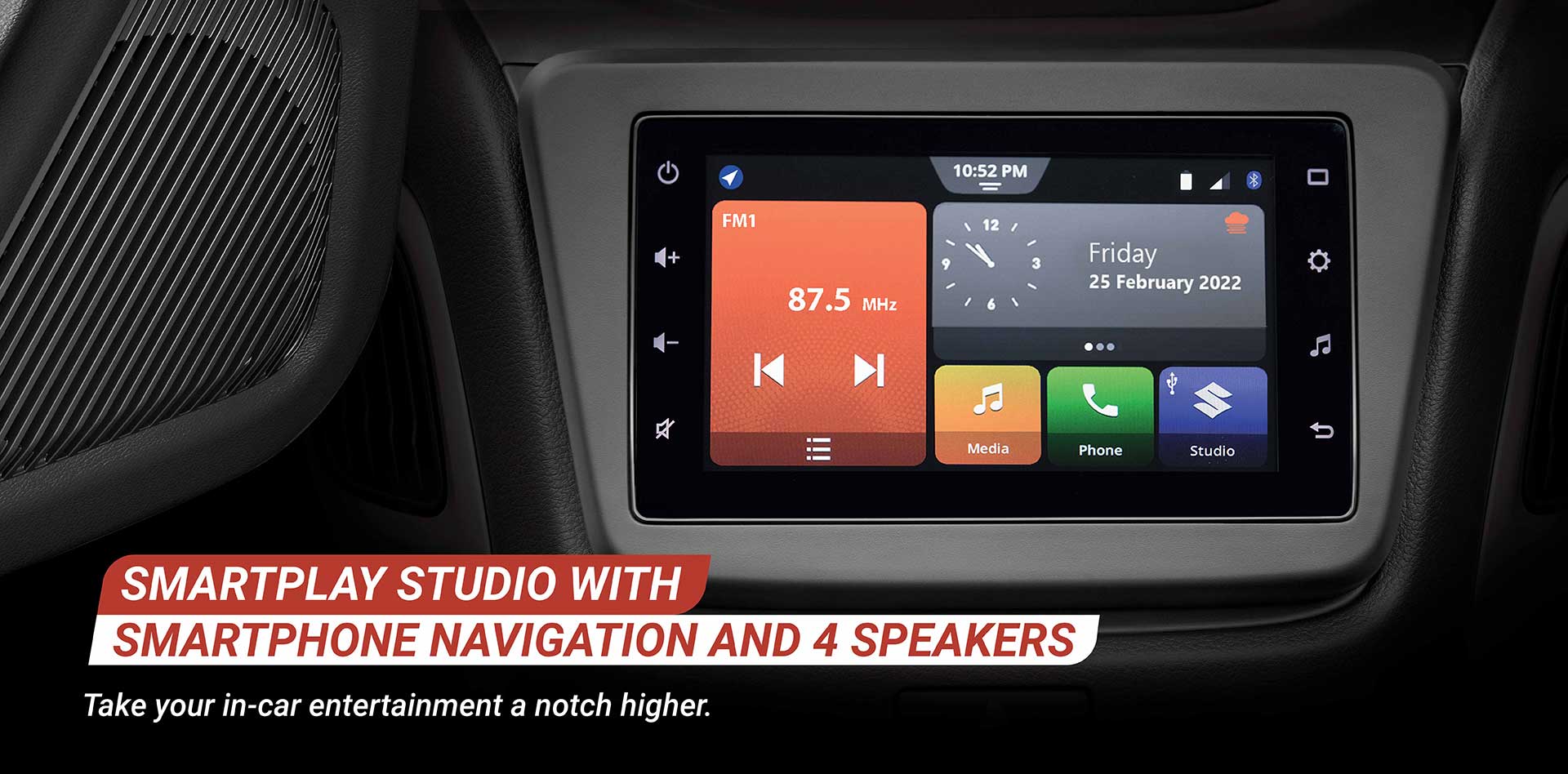

| 17.78 cm Smartplay Studio with Smartphone Navigation | ![]() |
![]() |
![]() |
![]() |
| Smartplay Dock | ![]() |
![]() |
![]() |
![]() |
| Apple Carplay and Android Auto | ![]() |
![]() |
![]() |
![]() |
| Bluetooth | ![]() |
![]() |
![]() |
![]() |
| Number of Speakers | ![]() |
2 | 2 | 4 |
| USB CONNECTIVITY/AUX | ![]() |
![]() |
![]() |
![]() |

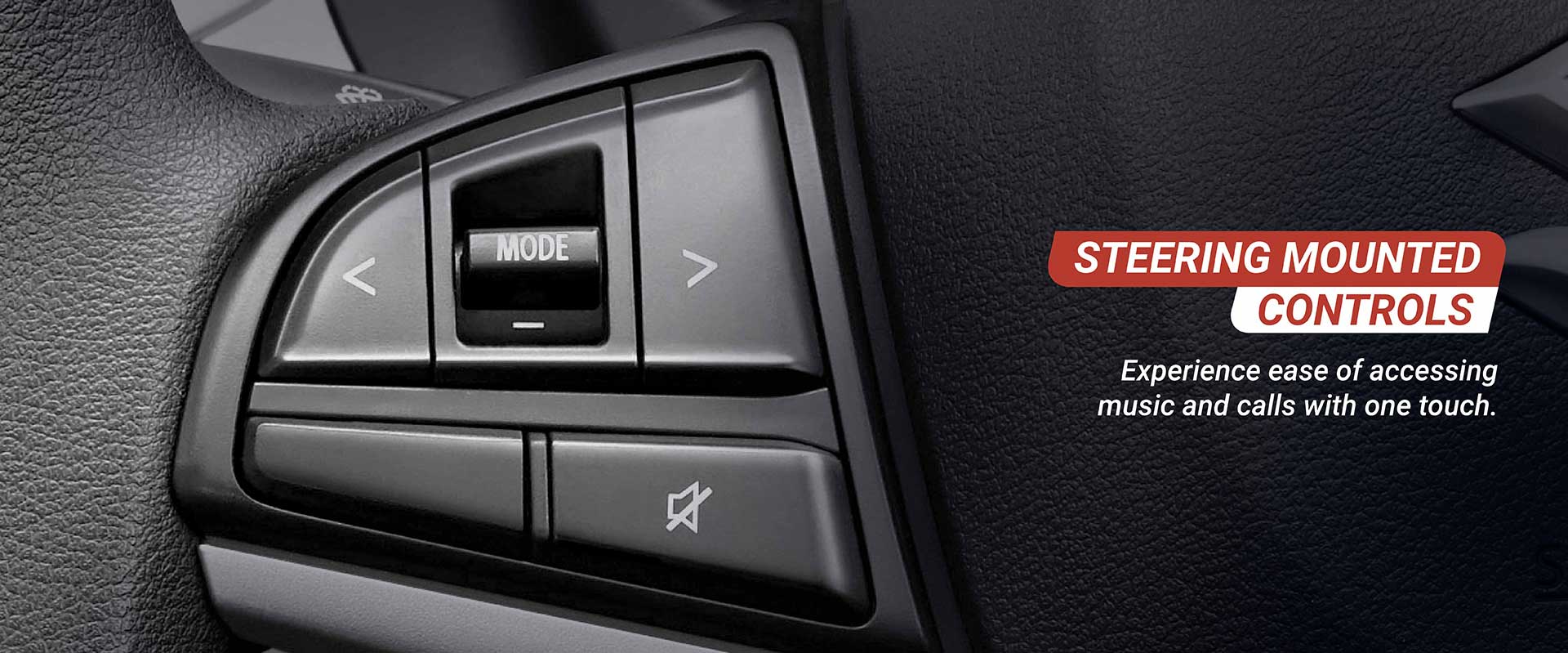

| Steering Mounted Audio Control | ![]() |
![]() |
![]() |
![]() |
| Steering Mounted Voice Control | ![]() |
![]() |
![]() |
![]() |
SAFETY & SECURITY
| GRADE NAME | 1.0L | 1.2L | ||
|---|---|---|---|---|
| LXi/LXi CNG | VXi / VXi AGS / VXi CNG |
ZXi/ ZXi AGS |
ZXi+/ ZXi+ AGS |
|

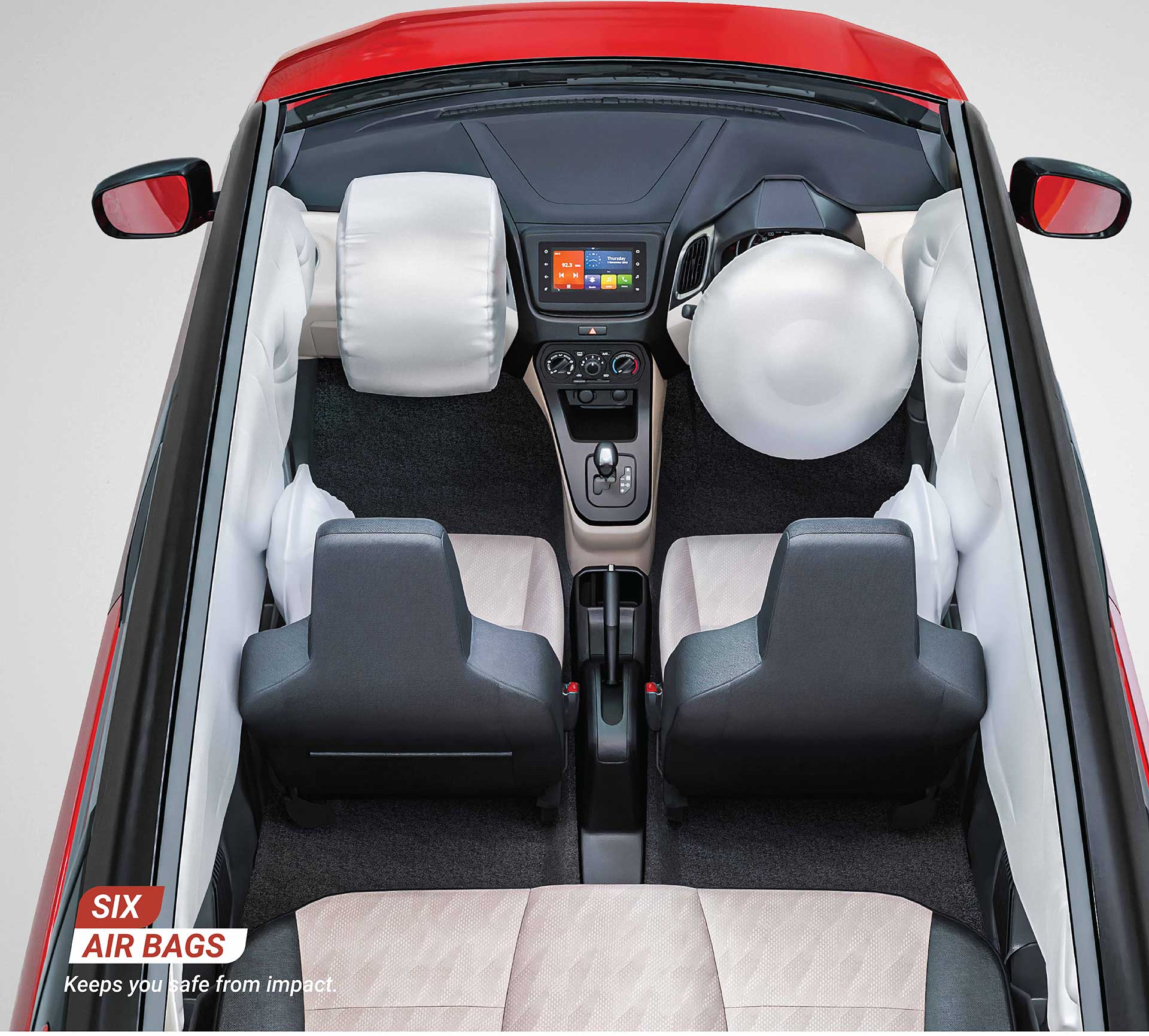

| Side and Curtain Airbags#^ | ![]() |
![]() |
![]() |
![]() |
| Dual Front Airbags (Driver and Co-driver)#^ | ![]() |
![]() |
![]() |
![]() |
| ABS with EBD | ![]() |
![]() |
![]() |
![]() |
| Electronic Stability Program (ESP) | ![]() |
![]() |
![]() |
![]() |
| Seat Belt Pre-tensioner & Force Limiters (Dr.+Co-Dr.) | ![]() |
![]() |
![]() |
![]() |
| Seat Belt Reminder with Buzzer (Front & Rear Seat) | ![]() |
![]() |
![]() |
![]() |
| 3-Point seat belts for all Seats | ![]() |
![]() |
![]() |
![]() |
| Speed Alert System^^ | ![]() |
![]() |
![]() |
![]() |
| Speed Sensitive Auto Door Lock | ![]() |
![]() |
![]() |
![]() |
| Security Alarm | ![]() |
![]() |
![]() |
![]() |
| Rear Parking Sensors | ![]() |
![]() |
![]() |
![]() |
| Central Locking | ![]() |
![]() |
![]() |
![]() |
| Child Proof Rear Door Lock | ![]() |
![]() |
![]() |
![]() |
| Front Fog Lamps | ![]() |
![]() |
![]() |
![]() |
| Hill Hold Assist | ![]() |
AGS | AGS | AGS |
EXTERIOR
| GRADE NAME | 1.0L | 1.2L | ||
|---|---|---|---|---|
| LXi/LXi CNG | VXi / VXi AGS / VXi CNG |
ZXi/ ZXi AGS |
ZXi+/ ZXi+ AGS |
|
| Roof Antenna | ![]() |
![]() |
![]() |
![]() |
| Full Wheel Cover | (Centre Cap ) | ![]() |
![]() |
![]() |
| Alloy Wheels | ![]() |
![]() |
![]() |
![]() |
| ORVM with Turn Indicators | ![]() |
![]() |
![]() |
![]() |
| Electrical Adjustable ORVM | ![]() |
![]() |
![]() |
![]() |
| Electrical Retractable ORVM | ![]() |
![]() |
![]() |
![]() |
| Rear Wiper & Washer | ![]() |
![]() |
![]() |
![]() |
| B-Pillar Black Out Tape | ![]() |
![]() |
![]() |
![]() |
| Body Coloured Door Handles | ![]() |
![]() |
![]() |
![]() |
| Body Coloured Bumpers | ![]() |
![]() |
![]() |
![]() |
| Body Coloured ORVMs | ![]() |
![]() |
![]() |
(Black in Dual Tone) |
| Dual Tone Exteriors | ![]() |
![]() |
![]() |
(Optional) |
All variants are BS VI (including OBD-II) compliant. #As certified by Test Agency Under Rule 115 (G) of Central Motor Vehicles Rules 1989. ***Pearl Bluish black colour available in all variant except LXI MT Petrol and CNG.
***Colour available in LXI MT petrol: Solid White, Metallic Silky Silver, Metallic Magma Grey.
AGS: Auto Gear Shift; MT: Manual Transmission.
Maruti Suzuki India Limited reserves the right to change, without notice, price, colours, equipment specifications, and model and also to discontinue models and/or replace any part or accessory with any product. Accessory and feature shown in the pictures may not be a part of standard equipment and will differ according to the variant. Any offers made will be
subject to availability of the product. For details, on functioning of safety features, including air bag, kindly refer to the Owner's Manual. For more details, contact your nearest store. **Spare wheel material is steel (for all variants). ^VDA Method.
subject to availability of the product. For details,on functioning of safety features, including air bag, kindly refer to the Owner’s Manual. For more details, contact your nearest store. **Spare wheel material is steel (for all variants). ^VDA Method.
*Android Auto™ extends the Android platform into the car in a way that’s purpose-built for driving. It is designed to minimise distraction so you can focus on driving with Google™ services like Google Maps™ and Google Search™. Get the Android Auto app on Google Play™. *Android Auto is available in the countries listed at the following link:
https://www.android.com/auto/#hit-the-road. *Most phones with Android 5.0+ work with Android Auto: https://support.google.com/androidauto/#6140477. *Android, Android Auto, Google, Google Play and other marks are trademarks of Google Inc. Image used are for illustration purposes only. ^^The speed alert system gives audible warning for alert of over-speed to
driver. When vehicle speed exceeds about 80 km/h, primary level warning with two beeps will sound every minute. When the vehicle speed exceeds about 120 km/h, secondary level warning with continuous beeps will sound. If the vehicle speed is slowed down to about 118 km/h, primary warning will resume. If the vehicle is slowed down to about 78 km/h, speed alert
warning will stop. This buzzer does not indicate any malfunction in vehicle. ##For details on functioning of safety features, including air bag, kindly refer to the Owner'’'s Manual.^#Terms and Conditions apply.
| FEATURE & SPECIFICATIONS | VARIANTS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GRADE NAME | WagonR Lxi 1.0L | WagonR Lxi CNG 1.0L | WagonR Vxi 1.0L | WagonR Vxi CNG 1.0L | WagonR Vxi AGS 1.0L | WagonR Zxi 1.2L | WagonR Zxi AGS 1.2L | WagonR Zxi+ 1.2L | WagonR Zxi+ AGS 1.2L | TOUR H3 PETROL | TOUR H3 CNG |
| Colours | |||||||||||

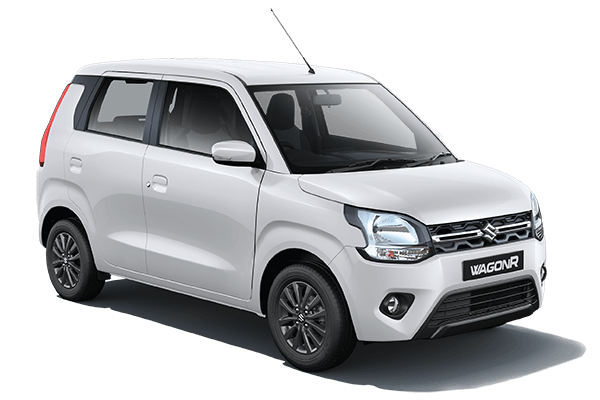

| Solid White | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

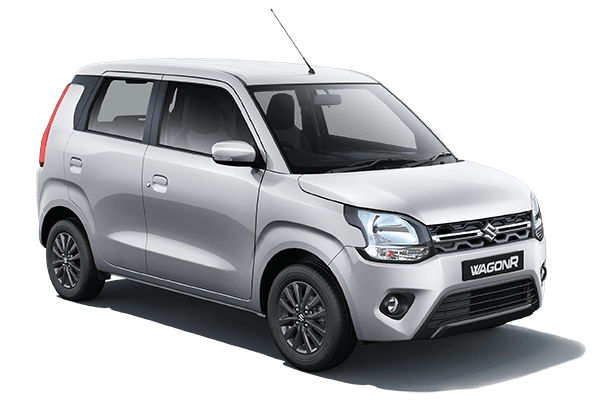

| Silky Silver | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Magma Grey | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

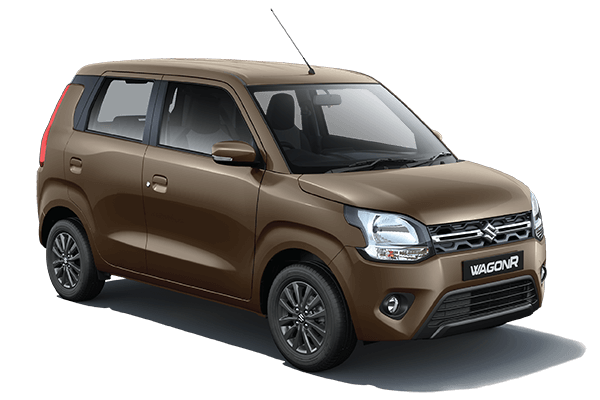

| Nutmeg Brown | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Poolside Blue | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Prime Gallant Red | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

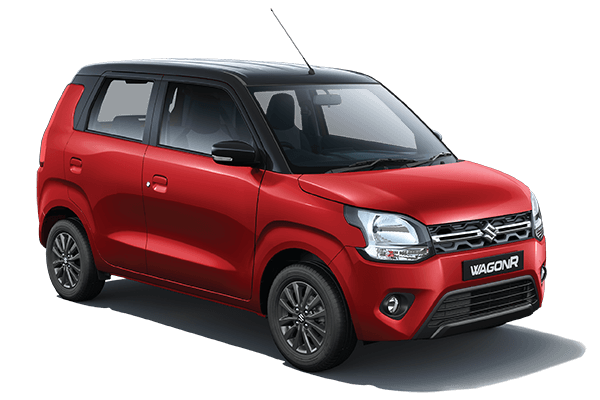

| Prime Gallant Red + Black | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

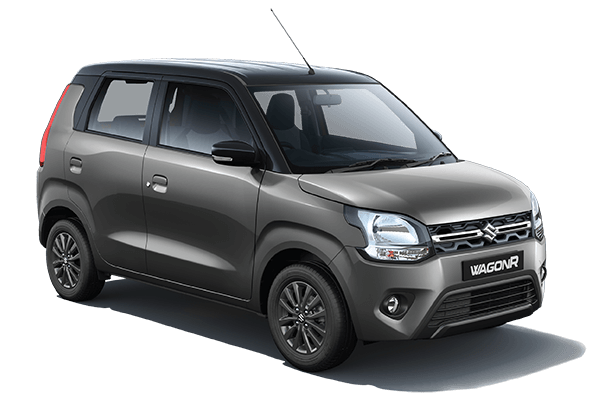

| Met.Magma Grey + Black | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

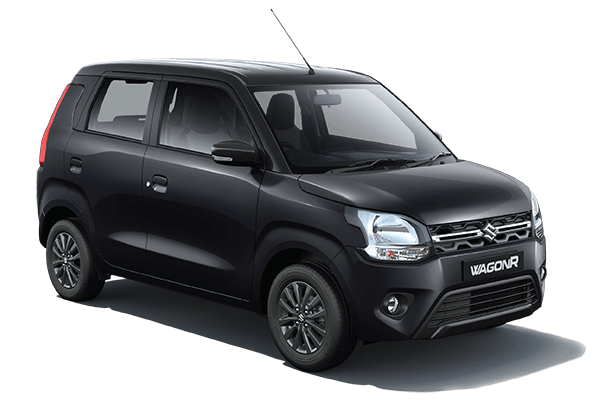

| Midnight Black | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
