dimensions
| Petrol | CNG | |
| Length (mm) | 3565 | |
| Width (mm) | 1520 | |
| Height (mm) | 1553 (Std MT, LXi MT) 1567 (VXi MT, VXi+ MT, Vxi(0) AGS, Vxi+(0) AGS) |
1553 (LXi MT), 1567 (VXi MT) |
| Wheelbase (mm) | 2380 | |
| Turning Radius (m) | 4.5 | |
| Seating Capacity | 5 | 4 |
Engine
| Petrol | CNG | |
| Type | K10C | K10C CNG |
| Capacity (cc) | 998 | |
| Power | 49kW (66.621 PS) @55500rpm | CNG Mode: 41.7kW (56.696 PS) @ 5300rpm Petrol MOde: 48kW (65.261 PS) @ 5500 rpm |
| Torque | 89 Nm @ 3500 rpm | CNG Mode: 82.1 Nm @ 3400 rpm Petrol MOde: 89 Nm @ 3500 rpm |
| Fuel Type | Petrol | Petrol+CNG |
| Fuel Tank Capacity (L) | 27 | Petrol:27 CNG: 55 (Equivalent Water Filling Capacity) |
| Emission Type | BS VI | |
Drive & Transmission
| Petrol | CNG | |
| Drive | 2WD, FF | |
| Transmission | 5MT / AGS | 5MT |
BRAKES
| Petrol | CNG | |
| Front | Ventilated Disc | |
| Rear | Drum | |
SUSPENSION
| Petrol | CNG | |
| Front | MacPherson Strut with Coil Spring | MacPherson Strut with Coil Spring and Stabilizer |
| Rear | Torsion Beam with Coil Spring | |
| Tyre Size | 145/80 R13 (Std MT, LXi MT) 165/70 R14 (VXi MT, VXi+ MT, Vxi(0) AGS VXi+(0) AGS) |
145/80 R13 (LXi MT) 165/70 R14 (VXi MT) |
weight
| Petrol | CNG | |
| Kerb Weight (kg) | 736-775 | 834-854 |
| Maximum GVW (kg) | 1170 | |
INTERIOR
| Grade Name | Std MT | LXi MT | VXi MT / VXi(O) AGS | VXi+ MT / VXi+(O) AGS |
| Dynamic Center Console |  |
|
|
|
| High Seating for commanding drive view | |
|
|
|
| Coloured Centre Garnish |  |
|
|
** |
| Front Cabin Lamp (3 positions) | |
|
|
|
| Sunvisor (Dr + Co.Dr) | |
|
|
|
COMFORT
| Grade Name | Std MT | LXi MT | VXi MT / VXi(O) AGS | VXi+ MT / VXi+(O) AGS |
| AC with Heater | |
|
|
|
| Power Steering | |
|
|
|
| Accessory Socket | |
|
|
|
| Front Console Utility Space | |
|
|
|
| 1L Bottle Holders with Map Pockets (Front Doors) | |
|
|
|
| Rear Console Utility Space | |
|
|
|
| Co-Driver Side Utility Space | |
|
|
|
| Reclining & Front Sliding Seats | |
|
|
|
| Remote keyless entry | |
|
|
|
| Rear Parcel Tray | |
|
|
|
| Front Power Windows | |
|
|
|
| Internally Adjustable ORVMs (Dr+Co. Dr) | |
|
|
|
| Electrically Adjustable ORVMs (Dr+Co. Dr) | |
|
|
|
| Idle Start Stop (ISS) | |
|
|
|
INFOTAINMENT SYSTEM
| Grade Name | Std MT | LXi MT | VXi MT / VXi(O) AGS | VXi+ MT / VXi+(O) AGS |
| SmartPlay Studio - 17.78 cm Touch Screen Infotainment System | |
|
|
|
| SmartPlay Dock | |
|
|
|
| Apple CarPlay and Android Auto | |
|
|
|
| Bluetooth | |
|
|
|
| Speakers | |
|
2 | 2 |
| USB connectivity/Aux | |
|
|
|
| Steering-Mounted Audio & Voice Control | |
|
|
|
SAFETY & SECURITY
| Grade Name | Std MT | LXi MT | VXi MT / VXi(O) AGS | VXi+ MT / VXi+(O) AGS | |
| HEARTECT Platform | |
|
|
|
|
| Cabin Air Filter | |
|
|
|
|
| ESP with Hill Hold | |
|
AGS Only | AGS Only | |
| ABS with EBD | |
|
|
|
|
| Seat belt reminder (Dr+Co. Dr) with Buzzer | |
|
|
|
|
| Rear Seat Belt | Center (2-Point Static) | |
Petrol variant only | Petrol variant only | |
| Outboard (3-Point) | (Static) |
(Static) |
(ELR) |
(ELR) |
|
| Reverse Parking Sensors | |
|
|
|
|
| Speed Alert System** | |
|
|
|
|
| Pedestrian protection | |
|
|
|
|
| Child Proof Rear Door Lock | |
|
|
|
|
| Speed Sensitive Auto Door Lock | |
|
|
|
|
| Central Door Locking | |
|
|
|
|
| Dual Airbag | |
|
|
|
|
| Seatbelt Pre-tensioner and Force Limiter (Dr+Co. Dr) | |
|
|
|
|
| Low Fuel Warning (In SmartPlay Studio) | |
|
SmartPlay Dock | SmartPlay Studio | |
| Door Ajar Warning (In SmartPlay Studio) | |
|
SmartPlay Dock | SmartPlay Studio | |
| Parking Brake Warning | |
|
|
|
|
EXTERIOR
| Grade Name | Std MT | LXi MT | VXi MT / VXi(O) AGS | VXi+ MT / VXi+(O) AGS |
| SUV Inspired Bold Front Fascia | |
|
|
|
| Twin Chamber Headlamps | |
|
|
|
| Roof Antenna | |
|
|
|
| Signature C shaped Tail Lamps | |
|
|
|
| B-Pillar Black out Tape | |
|
|
|
| Side Body Cladding | |
|
|
|
| Body Coloured Bumpers | |
|
|
|
| Body Coloured ORVMs | |
|
|
|
| Body Coloured Outside Door Handles | |
|
|
|
| Full Wheel Covers | |
|
|
|
INSTRUMENT CLUSTER
| Grade Name | Std MT | LXi MT | VXi MT / VXi(O) AGS | VXi+ MT / VXi+(O) AGS |
| Digital Display in the Instrument Cluster | |
|
|
|
| Fuel Consumption (Instantaneous & Average) | |
|
|
|
| Headlamp On Warning | |
|
|
|
| Gear Shift Indicator (MT only) | |
|
Petrol Only | Petrol Only |
| Gear Position Indicator (AGS only) | |
|
AGS only | AGS only |
| Distance to empty | |
|
|
|
Remarks
- Electrically adjustable ORVM added in Vxi+ and internally adjustable ORVM added in Vxi
- ESP w Hill hold added in AMT variants
- ISS added in all gasoline variants
- Pollen filter added in all variants
All variants are BS VI compliant.

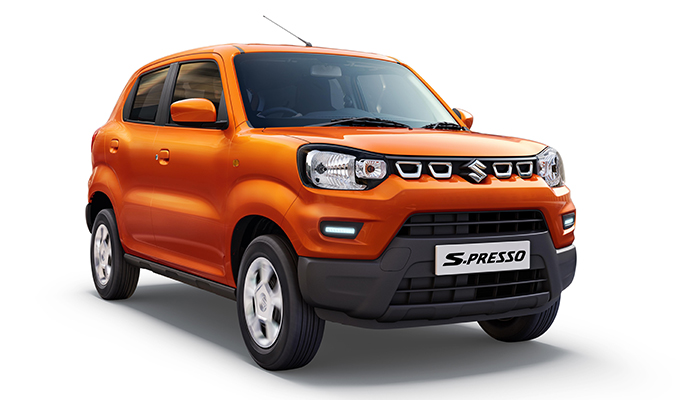

Std: Standard, AGS: Auto Gear Shift, MT: Manual Transmission. *Orange in solid sizzle
orange body colour & Silver in the remaining 5 body colours.
(O): Optional in case of AGS variants.
^The speed alert system gives an audible warning for alert of over-speed to the driver When
vehicle speed exceeds about 80 km/h, a primary level warning with two beeps
will sound every minute. When the vehicle speed exceeds about 120 km/h, secondary level warning with
continuous beeps will sound. If the vehicle speed is slowed down to about
118 km/h, the vehicle warning will resume. If the vehicle is slowed down to about 78 km/h, speed alert
warning will stop. This buzzer does not indicate any malfunction in the vehicle.
###Apple and iPhone are trademarks of Apple Inc. registered in the U.S. and other countries.
Apple CarPlay is a trademark of Apple Inc., Apple CarPlay is available in the countries listed in the
following link: http://www.apple.com/ios/feature-availability/#applecarplay-applecarplay.
Apple CarPlay is compatible with the iPhone models listed in the following link:
http://www/apple.com/ios/carplay.
Android AutoTM extends the Android platform
into the car in a way that's purpose-built for driving. It is designed to minimise distraction so you
can focus on driving with Google™ services like Google Map™ and Google Search™.
Get the Android Auto app on Google Play™. Android Auto is available in the countries listed at the
following link: https://www.android.com/auto/#hit-the-road.
Most phones with Android 5.0+ work with Android Auto:
https://support.google.com/androidauto/#6140477.
Android, Android Auto, Google, Google Play and other marks are trademarks of Google Inc.
For details on the functioning of safety features including airbags, kindly refer to the Owners Manual.
